Drillmec HH-300FA 1500 HP Ram Rig (2011)

Drillmec HH-300FA hydraulic single-lift ram rig — 1,500 HP, recertified 2022, with full pipe handling automation.

1,500 HP
Ram Rig
Drillmec HH-300FA
600K lbs
Hook Load
Hydraulic Mast
14,765 ft
Design Depth
w/ 5" Drill Pipe
2011 / 2022
Built / Recertified
Drillmec HH-300FA 1500 HP Ram Rig (2011)
Drillmec HH-300FA hydraulic single-lift ram rig — 1,500 HP, recertified 2022, with full pipe handling automation.

Drillmec HH-300FA hydraulic single-lift ram rig built 2011 and recertified 2022. Rated 1,500 HP with 600,000-lb hook load at 10 lines and 14,765-ft design depth. Features Drillmec HH275 top drive (600K lb capacity, 36,200 ft-lb torque), full-auto pipe handling and make-up system, two Drillmec 12-T-160 triplex mud pumps at 1,600 HP each, and three MTU 12V4000 gensets at 1,500 HP each. MI Swaco Mongoose shale shakers and 1,344-bbl active mud system.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • TypeHH-300 Hydraulic Single-Lift
  • Mast Height16.6 m (54.5 ft)
  • Base Height25 ft (7.6 m)
  • Hook Load600,000 lbs (272 mt)
  • Casing Load600,000 lbs (272 mt)
⚙️

Drawworks (Ram Rig)

  • TypeHH 300 Ram Rig
  • HP Rating1,500 HP (1,118 kW)
  • Max Line Pull76,435 lbs (34.67 mt)
  • Drilling Line1 3/8" (34.9 mm)
🔄

Top Drive

  • TypeDrillmec HH275
  • Capacity600,000 lbs (272 mt)
  • Torque36,200 ft-lbs @ 90 RPM
  • Pipe HandlingFull Auto Make-Up System
💧

Mud System

  • Mud Pumps2× Drillmec 12-T-160 Triplex
  • Pump Rating1,600 HP each
  • Standpipe Pressure5,000 psi (345 bar)
  • Active Mud System1,344 bbl (215 m³)
  • Shale Shakers2× MI Swaco Mongoose
⚡

Power Generation

  • Engine TypeMTU 12V4000 G23
  • Qty / Rating3× 1,500 HP @ 1,800 RPM
  • Generators3× LS LSA51.2, 1,750 kVA
  • Voltage600/460 V, 50 Hz
  • Drive SystemDrillmec PCR SCR Unit
🔒

BOP System

  • Annular13⅝" 5,000 psi
  • Double Ram13⅝" 5,000 psi
  • Single RamN/A
Equipment Gallery

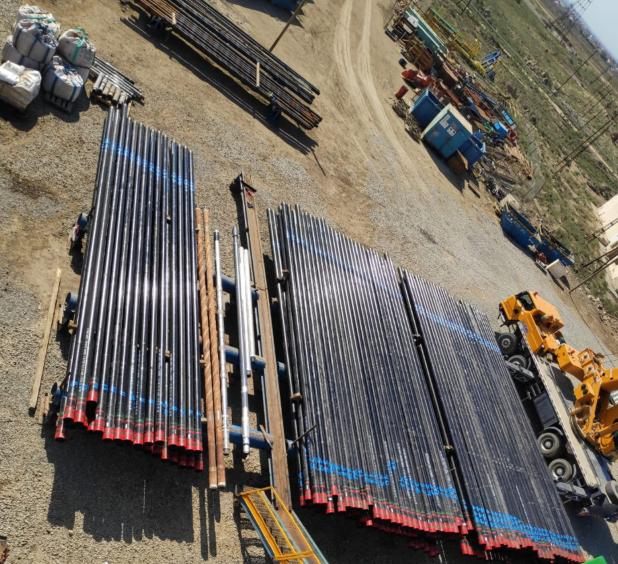

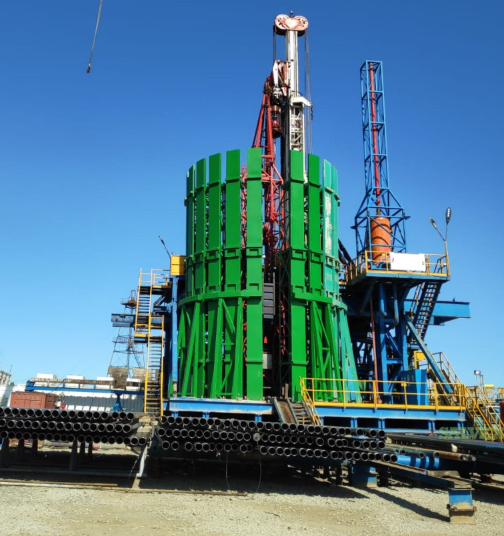

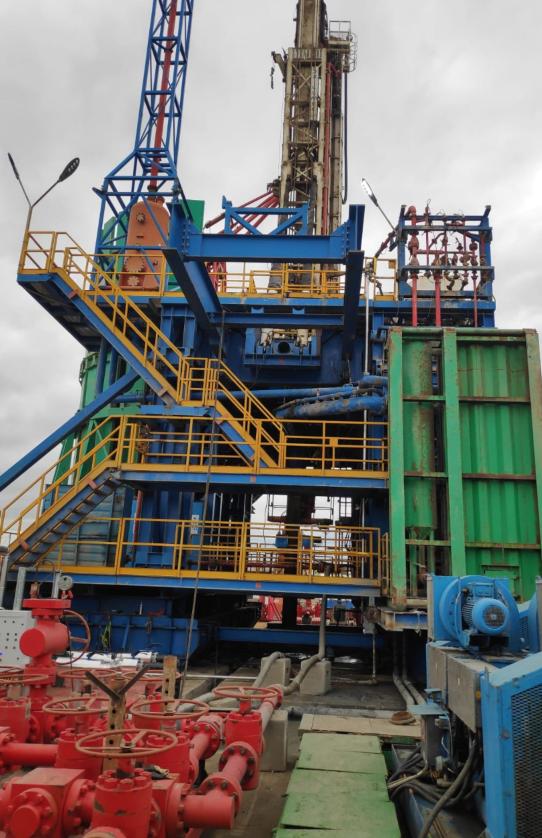

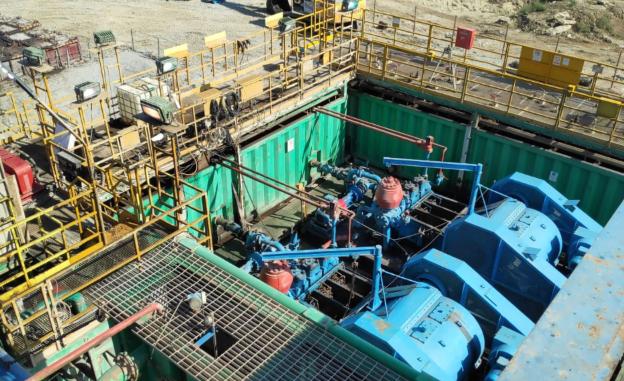

Rig Photos

Capabilities

Key Advantages

01

Hydraulic Ram Rig Design

The HH-300FA hydraulic single-lift design enables fast rig-up/rig-down with minimal crane requirements — ideal for pad drilling and remote locations.

02

Full Pipe Handling Automation

Integrated full-auto pipe handling and make-up system reduces crew requirements and improves tripping speed and safety.

03

Recertified 2022

Built 2011 and fully recertified in 2022, with updated compliance certifications.

Complete Data

Full Equipment Status

General

TypeHydraulic Ram Rig HH-300FA
Year Built2011
Recertified2022
Rated HP1,500
Hook Load600,000 lbs @ 10 lines
Design Depth14,765 ft w/ 5" DP

Mast

TypeHH-300 Hydraulic Single-Lift
Height16.6 m
Hook Load600,000 lbs (272 mt)

Drawworks

TypeHH 300 Ram Rig
HP1,500 HP (1,118 kW)
Max Line Pull76,435 lbs (34.67 mt)
Drilling Line1 3/8" (34.9 mm)

Top Drive

TypeDrillmec HH275
Capacity600,000 lbs (272 mt)
Torque36,200 ft-lbs @ 90 RPM

Rotary Table

TypeDrillmec
Opening27½"

Mud Pumps

TypeDrillmec 12-T-160 Triplex
Qty2
Rating1,600 HP each
Standpipe Pressure5,000 psi (345 bar)

Mud System

Active System1,344 bbl (215 m³)
Trip Tank50 bbl (8 m³)
Shale Shakers2× MI Swaco Mongoose
Reserve System0 bbl

Power Generation

EngineMTU 12V4000 G23
Qty / Rating3× 1,500 HP @ 1,800 RPM
GeneratorLS LSA51.2 1,750 kVA each
Voltage600/460 V, 50 Hz
DriveDrillmec PCR SCR System

BOP

Annular13⅝" 5,000 psi
Double Ram13⅝" 5,000 psi

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
