⚡ Electric Fracturing — Trailer Mounted

NOV Rolligon
Trailer Mounted Ideal™ eFrac

5,000 HP medium-voltage electric fracturing unit — SPM QEM5000 quintuplex pump, 15,000 PSI working pressure, STIMSIGHT™ MultiPump compatible, NOV Max™ ready. Ref. SF23-8151. Designed for unmanned operation.

5,000
Horsepower
15K PSI
Working Pressure
13.8 kV
Primary Power
130K lbs
Unit Weight
✉ Enquire — [email protected] 📞 1-860-608-2327
NOV Rolligon eFrac Trailer Unit
Spec SF23-8151 Rev 1 · Jul 2024
NOV Rolligon Ideal™ Electric Fracturing Unit
Equipment Photography
Unit Imagery

NOV Rolligon SF23-8151 — all views.

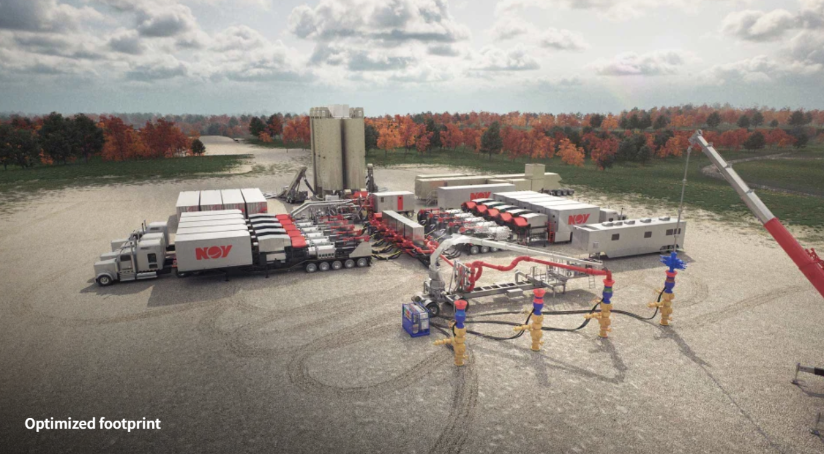

NOV Rolligon eFrac — overview

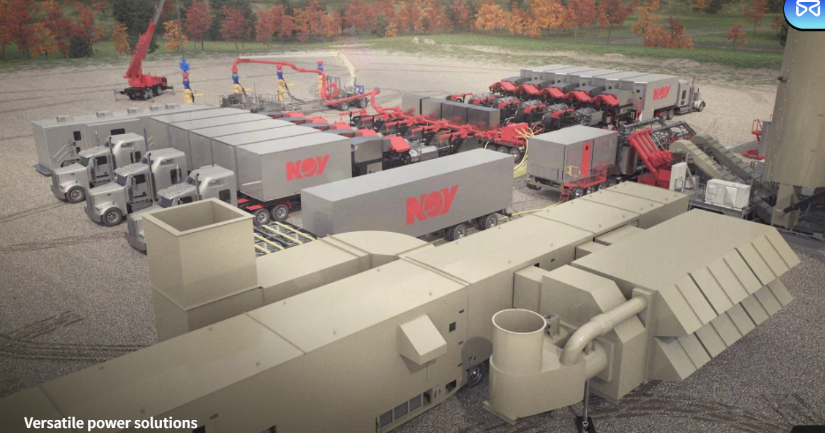

NOV Rolligon eFrac — E-house / controls

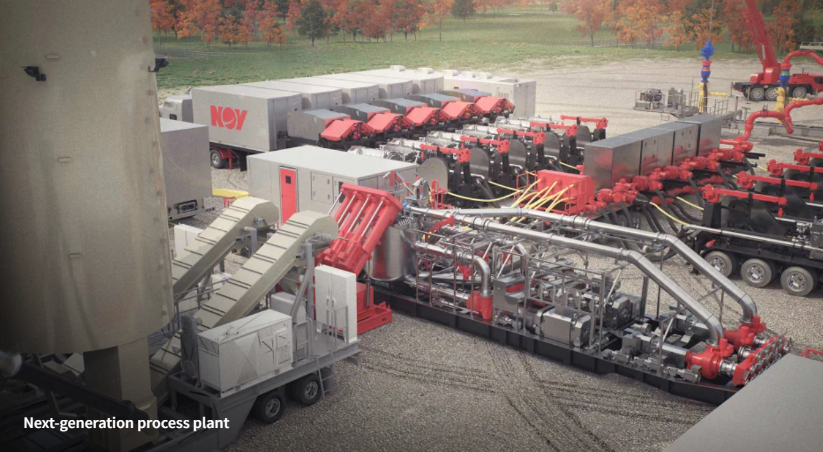

NOV Rolligon eFrac — pump end

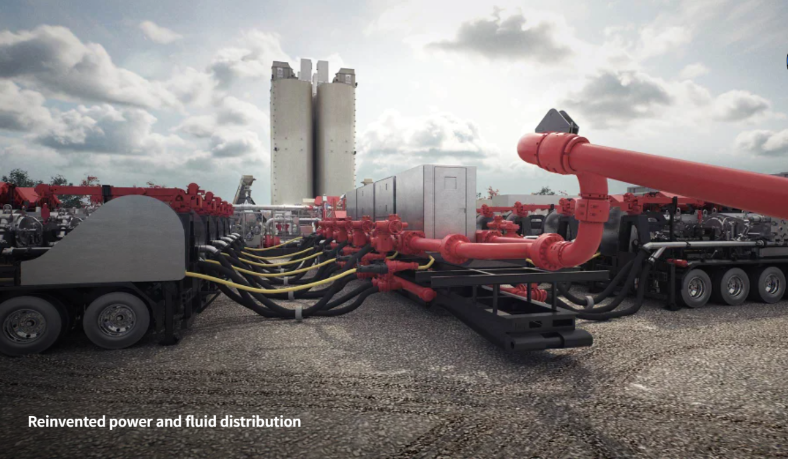

NOV Rolligon eFrac — detail
Performance Summary
At a Glance

Core capabilities — SF23-8151.

⚡
5,000 HP
Medium Voltage Motor (5,000 BHP)
💧
15,000 PSI
Working Pressure — SPM QEM5000
🔌
13.8 kV
Primary Power @ 60 Hz / 211A
🔁
2,800 RPM
Max Motor Speed
📡
NOV Max™
Edge Device Ready — Cloud CBM
🎛️
STIMSIGHT™
MultiPump Compatible Controls
Physical Dimensions

Approximate. No loose iron.

59 ft 6 in
Length
8 ft 6 in
Width
13 ft
Height
130,000 lbs
Weight
Full Technical Specification
Specification Detail — SF23-8151

Per NOV Rolligon Rev 1, July 31, 2024.

Trailer
TypeHeavy-duty drop deck
King Pin Height52" gooseneck deck
Drop Deck Height~48"
King Pin SettingStandard, 18" setback
Axles5 × 30,000 lb, air ride suspension
Wheels / Tyres20 × aluminium, tubeless 275/70R22.5
BrakesAir type, single ABS axle
Landing LegsTwo speed
King Pin2" removable SAE, ½" rub plate
LightingDOT compliant — stop / turn / clearance
Grounding Points8 × stainless steel
Power System — E-House
Primary Power13.8 kV @ 60 Hz / 211A input
Support Power480 VAC auxiliary load
Input Transformer4,500 KVA (for MV Drive)
Variable Frequency DriveMedium voltage — 5,000 HP
E-House DesignUnmanned; anti-condensation heaters
MV/LV SegregationMetal barriers; separate access hatches
CoolingAir cooling for worst-case conditions
Electric Motor
Rating5,000 BHP medium voltage
CoolingFan motor 480 VAC; ingress protection
SensorsWinding and bearing temperature
HeatersAnti-condensation
Pumping System — SPM QEM5000
Pump ModelSPM QEM5000 Quintuplex
Stroke8"
Gear Reducer10.05:1 pump drive
Fluid EndStainless steel, valve over valve
Max Plungers5"
Discharge Connection4" Fig 1502 (facing rear)
Safety Iron4" to 3" Fig 1502 M adapter; bridle
Discharge Hose3" Fig 1502 × 17 ft, spiral guard
Suction ManifoldSteel; 2 × Fig 206 male union (rear)
Supercharge Pressure80 PSI minimum
Lubrication System
Lube Oil Reservoir~220 gal, stainless steel
Circuit TypeDual circuit + kidney loop
Pump DriveVFD-controlled electric motor
Plunger LubeElectric grease injection
Control System
Remote ControlSTIMSIGHT™ MultiPump compatible
CommunicationEthernet via fibre to J-box
Maintenance ModeHMI on laptop — no control van needed
Auto ShutdownOverpressure inhibit on VFD
Emergency KillOSHA compliant — trailer & van
Edge DeviceNOV Max™ Ready — cellular cloud
CBM SystemAccelerometers on motor & pump; oil particulate
Major Systems
How It's Built

Six integrated systems make up the SF23-8151 eFrac package.

🔌
Medium Voltage Power System
E-House for unmanned operation — 13.8 kV input, 4,500 KVA transformer, 5,000 HP MV-VFD.
  • 13.8 kV @ 60 Hz / 211A input
  • 4,500 KVA input transformer
  • 5,000 HP Variable Frequency Drive
  • Anti-condensation heaters throughout
  • MV/LV metal barrier segregation
⚙️
SPM QEM5000 Quintuplex Pump
5,000 HP quintuplex with stainless steel fluid end, rear-mounted with full discharge and suction manifolding.
  • 8" stroke, 10.05:1 gear reducer
  • Stainless steel valve over valve fluid end
  • Up to 5" plungers
  • 4" Fig 1502 discharge iron
  • Single 2" Fig 1502 gauge connection
🛢️
Dual-Circuit Lube System
220-gal stainless reservoir, dual circuit + kidney loop, VFD-driven pump, plus a separate plunger grease injection system.
  • ~220-gallon SS reservoir
  • Dual circuit + kidney loop
  • Check valve, fluid filter, adjustable relief
  • Plunger grease injection — auto-engaged
  • Plunger drip pan (removable)
🎛️
Control & Shutdown System
STIMSIGHT™ MultiPump digital frac control with fibre Ethernet comms, auto overpressure shutdown, Emergency Stop and Kill modes.
  • STIMSIGHT™ MultiPump compatibility
  • Fibre Ethernet control network
  • Maintenance mode HMI (laptop-based)
  • Overpressure inhibit auto shutdown
  • OSHA-compliant Emergency Kill mode
📡
NOV Max™ Edge Device
Delivered Max™-ready with cellular cloud transfer, condition-based monitoring, and optional Max platform subscriptions.
  • Cellular upload to NOV secure cloud
  • Remote real-time equipment health
  • Alerts & alarms on monitored channels
  • GPS location tracking
  • Accelerometer CBM on motor & pump
🔧
Hose Handling System
Electric hose handling for 2-person high-pressure iron placement — stowable for transport and field operation.
  • Electric actuation
  • 2-person operable
  • Stowable for transit
  • Moves HP iron storage ↔ hookup
Ideal For
Applications

Where this unit delivers its strongest value.

⚡
Electric Frac Fleets
Medium voltage, VFD-controlled, STIMSIGHT™ MultiPump compatible — built from the ground up as an eFrac fleet unit.
🤖
Unmanned Operations
E-House designed as unmanned space. Full remote instrumentation, shutdown, and CBM support reduced wellsite headcount.
🛣️
Pad-to-Pad Mobility
Self-contained, road-legal, DOT compliant — 59'6" × 8'6" × 13', 5-axle air ride. Built for efficient inter-pad moves.
🌱
ESG / Low-Emissions Completions
Zero direct wellsite emissions. Eliminates diesel exhaust — supporting operators' ESG programmes.
📊
Digital / Predictive Maintenance
NOV Max™ ready with CBM, accelerometers, oil particulate monitoring, and cloud connectivity.
🏗️
High-HP / High-Pressure Jobs
15,000 PSI at 5,000 HP — suited to deep, tight formations demanding high treating pressures.
Delivery Package
Standard Completion

Supplied with the unit as standard per SF23-8151.

Included Items

  • ✓ Toolbox & 1 set pump service tools
  • ✓ Junk basket for swages
  • ✓ 2 × fire extinguishers
  • ✓ Grounding kit
  • ✓ Test certificates — 2 copies (English)
  • ✓ Digital manuals — 2 copies (English); operating & maintenance procedures, schematics, parts list
  • ✓ NOV land-based urethane paint system; blast to industry standards; customer single-colour scheme

Available Options

  • + NOV Max™ Platform subscription (Monitoring, Scheduler, Maintenance, Completions)
  • + STIMSIGHT™ MultiPump (sold separately)
  • + Cellular data plan for NOV Max™ cloud
  • + Additional/custom paint colours (subject to review)
Specification Reference

Reference Number: SF23-8151
Revision Level: 1
Document Date: July 31, 2024
Manufacturer: NOV Rolligon

Enquire About This Unit

Contact Total Drilling Supply LLC for pricing, availability, and full documentation on the NOV Rolligon SF23-8151.

Email
[email protected]
Phone
1-860-608-2327
Contact
Bob Neundorf, Chairman
Send Enquiry

Specifications per NOV Rolligon SF23-8151 Rev 1, July 31 2024. Dimensions approximate. Subject to change. Contact for current availability and pricing.
